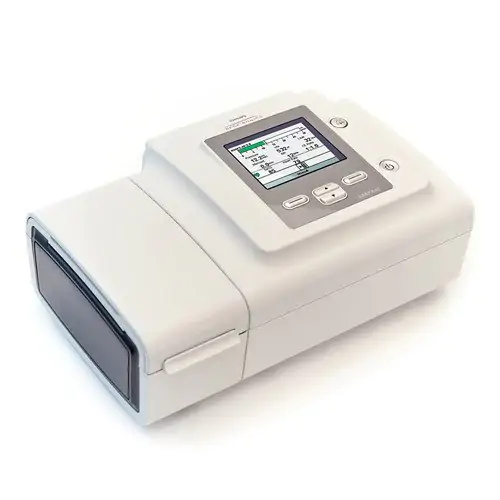

Philips BIPAP A40 NIV Ventilator with Battery Backup

Description

The device simultaneously monitors and adjusts pressure support to maintain TTV (Target Tidal Volume). Set to Auto breath rate, the device adjusts the backup breath rate based on the patient’s spontaneous respiratory rate. With patient comfort foremost in their minds, designers have equipped the BiPAP A40 with the clinically proven Auto-TRAK algorithm with an enhanced leak compensation technology to handle changes in respiration.

• IPAP/EPAP: 4 – 40 cm H2O / 4-25 cm H2O
• Ventilation modes: CPAP, S, S/T, PC, T, AVAPS-AE
• Target tidal volume: 200 – 1500 ML
• Breath rate: 0 – 40 bpm
• Rise time: 1(100ms) – 6 (600ms)
• Humidification: System One humidity control and ‘Dry Box’ technology
• Hybrid ventilation: AVAPS (Average Volume Assured Pressure Support)
• AVAPS rate: 0.5 to 5 cm H2O/min
• Inspiratory time: 0.5 to 3 sec
• Alarms: Patient disconnection, apnea, low minute ventilation, low tidal volume, high respiratory rate
• Monitoring: Pressure, tidal volume, minute ventilation, respiration rate, leak
• Filters: Foam and optional ultra-fine
• Data Management: EncorePro 2 and DirectView software Compatible with oximetry module
• Battery backup: 5-9hrs at IPAP 15 / EPAP 4 cm H2O and 12 BPM
• Noise level: 30 dBa AT 10 cm water

Contents of the box:

• Device
• Filters
• Tubing
• Power Adapter
• SD Card
• User Manual

Note: Please contact our Customer Service department for more information on obtaining Resmed products.
